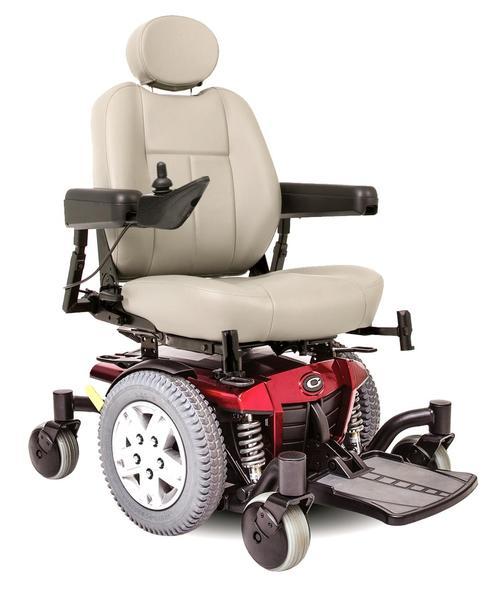

Jazzy 623

Engineered to meet the needs of the most active user it comes with standard features like 4-pole motors, Mid-Wheel 6 drive design and ATX Suspension. It also comes standard with highback seat and Dynamic Shark controller to deliver exceptional performance capability.

The Mid-Wheel 6 allows all of its six wheels to stay on the ground for maximum stability while low impact OMNI-Casters on front and rear prevent wheel hang-ups. ATX Supsension is also incorporated into the front OMNI-Castors and semi-independent rear castor beam.

FEATURES

Mid-Wheel 6 allows six wheels on the ground for maximum stability
Compatible with TRU-Balance Power Positioning
Low impact OMNI-Casters (nylon, spherical-shaped castors) on front and rear prevent wheel hang-ups
ATX Suspension (Active-Trac with extra stability) incorporates front OMNI-Castors and semi-independent rear castor beam

SPECIFICATIONS

Weight capacity: 136kg
Maximum speed: Up to 8km/h
Ground clearance: 6.35cm at front castor, 7.62cm at rear castor
Turning radius: 50.8cm
Overall length: 90.17cm
Overall width: 61cm
Drive wheels: 35.56cm
Front castors: 15.25cm solid OMNI-casters
Rear castors: 15.25cm solid OMNI-casters
Suspension: Active-Trac ATX Suspension
Drivetrain: Two-motor, Mid-Wheel 6
Braking system: Intelligent braking (electronic, regenerative disc brakes)
Standard electronics: 75 amp, Dynamic Shark controller
Standard seat: High-back seat
Specialty controls: Yes
Battery charger: Off-board, 8 amp
Per-charge range: Up to 25.6km
Battery requirements: (2) 12 volt deep-cycle
Battery size (largest): 55 AH
Battery weight: 17.7kg each
Base weight: 62kg (without batteries)
Standard seat weight: 20kg (high-back)
Standard seating dimensions: 45.7cm x 45.7cm

SKU	1259007
Brand	Pride Mobility
Shipping Weight	132.0000kg
Shipping Width	0.860m
Shipping Height	1.200m
Shipping Length	1.200m
Shipping Cubic	1.238400000m3
