Overview

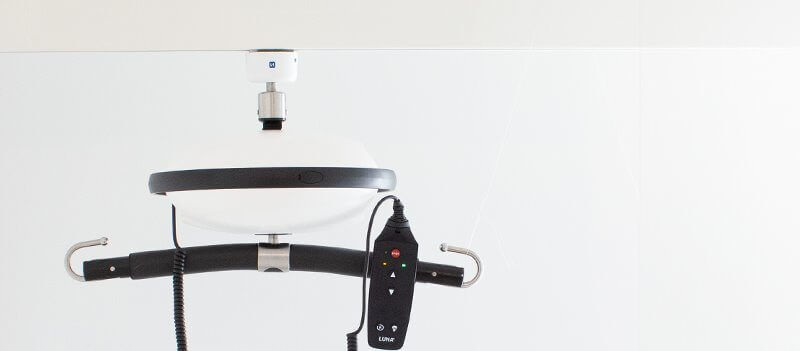

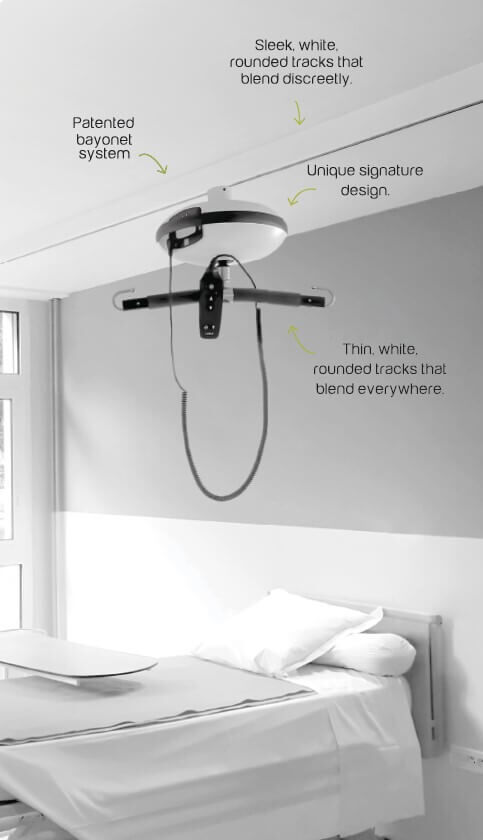

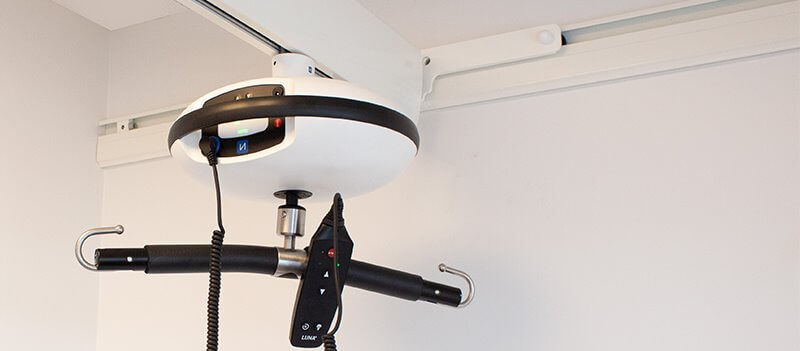

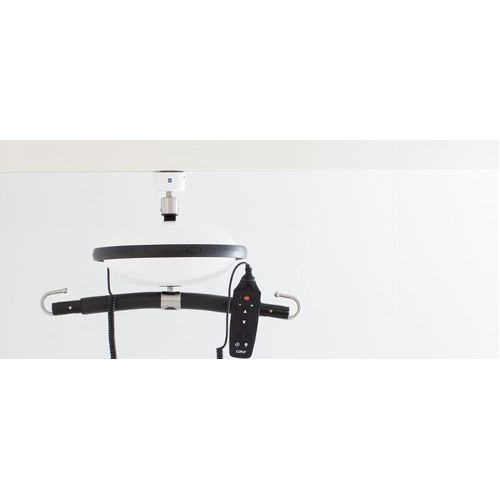

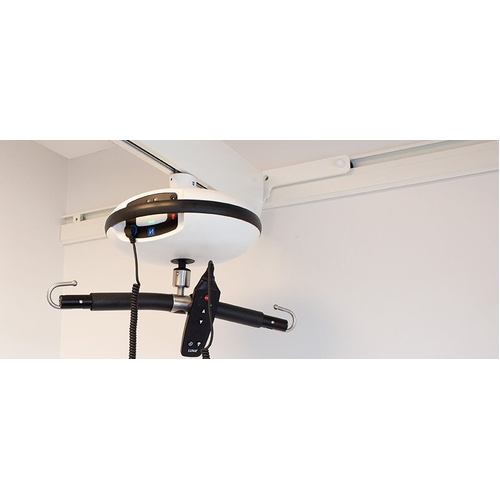

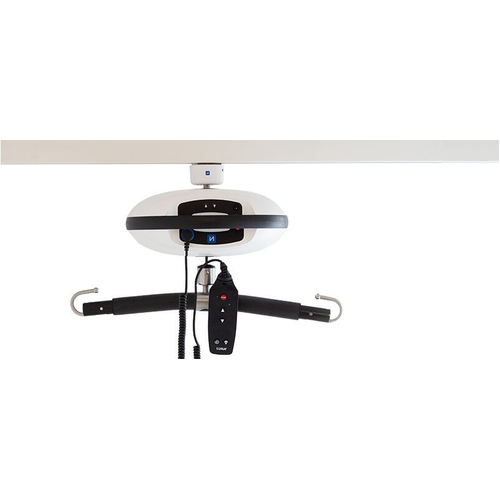

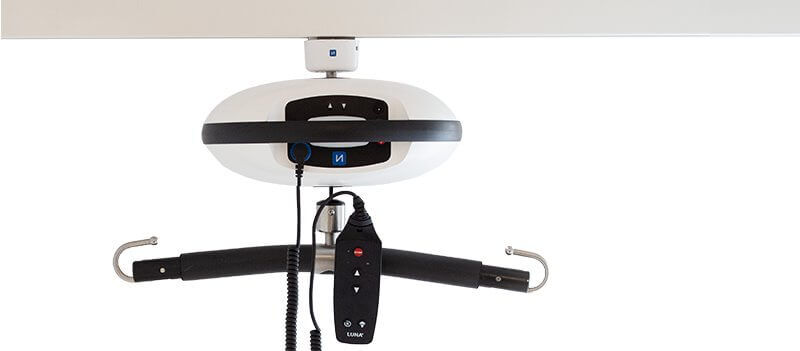

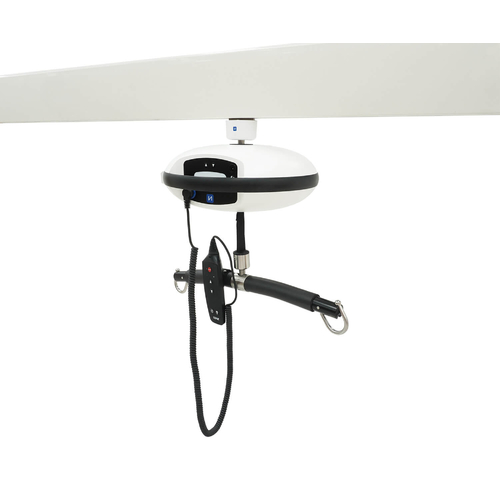

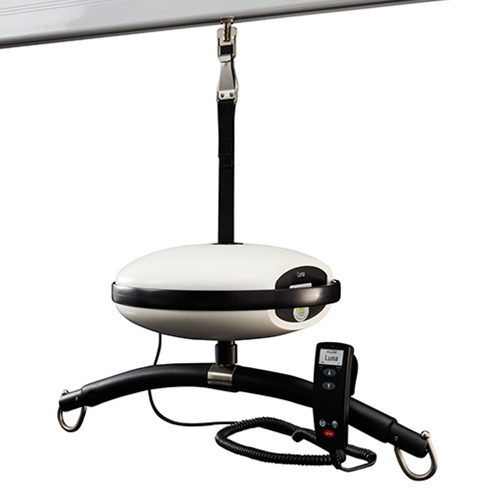

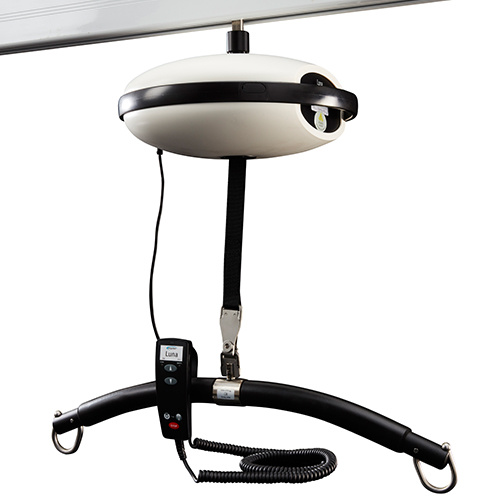

Luna X5 is designed for discreet, elegant, and seamless integration into any care environment. Its all-in-one concept (fixed, portable & multiple lifting capacity module) and high lifting range offer long-term flexibility.
Built for durability and minimal maintenance, Luna X5 reduces the total cost of ownership. The unique eco-design and the use of recycled aluminum tracks significantly reduce environmental impact.
Luna X5 features intuitive and smooth operation simplifying daily use for caregivers and technical teams while maximizing resident safety and comfort.
Besides, a series of accessories are compatible with Luna X5 which include:
- 2-point spreader bar: available in 3 sizes (small, medium and large)
- 3-point spreader bar
- Universal weighing scale (accuracy 100g)
- Weighing scale (accuracy 100g)
- Slings: full range of slings to meet all needs

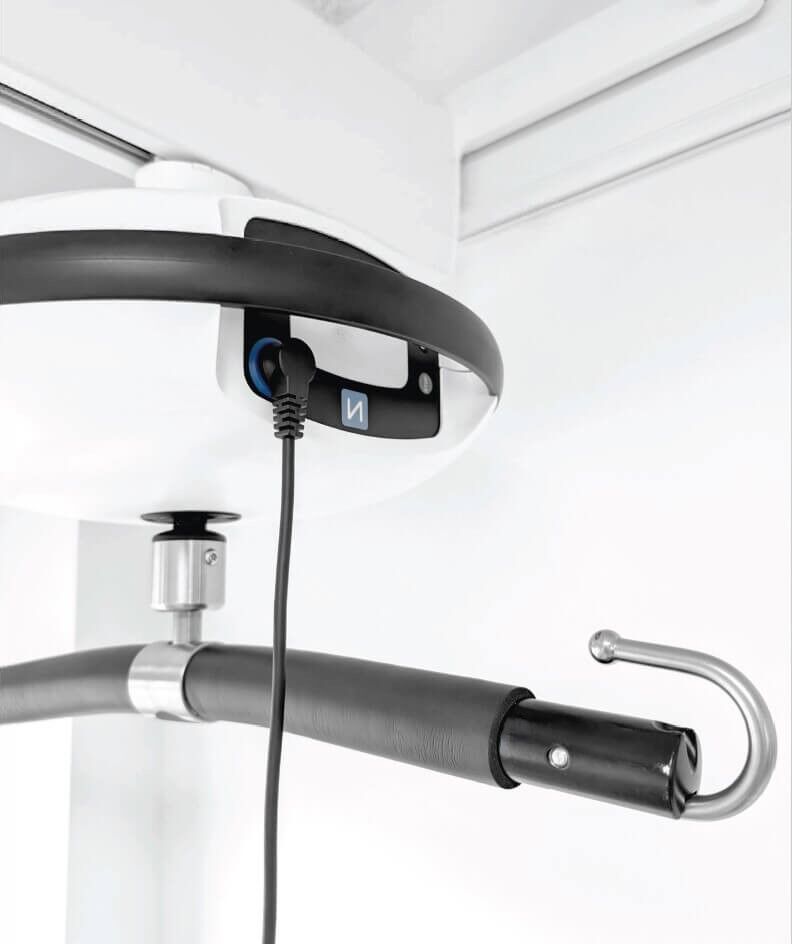

- In-Track Charging: different kits depending on track configuration
- Telescopic extension arm: light and highly maneuverable
Luna X5 can be chosen from 150, 200 and 275kg capacity. Please contact Active Mobility (Tel: 02 9649 2111, Email: sales@activemobility.com.au) for detailed inquiry.
Let's shape the future of care with Luna X5!
Features

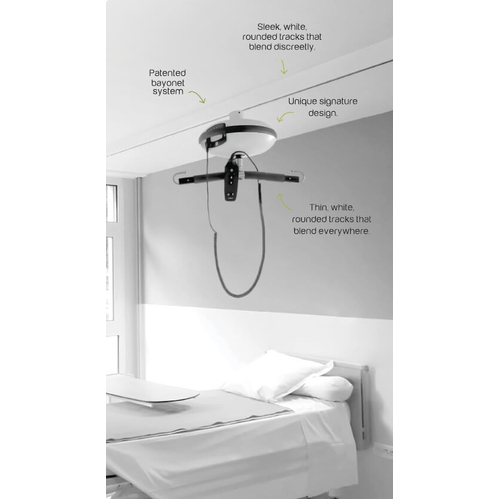

- Unique and elegant design: all-in-one lift, unparalleled lifting height and In-Track Charging (ITC) capability
- Simple, safe and smooth to use for enhanced care
- Improved sustainability with reduced environmental impact
- Built to last for optimized Total Cost of Ownership and return on investment

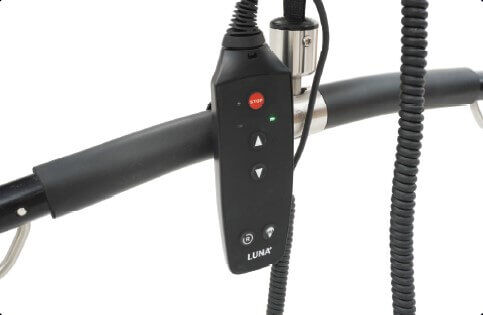

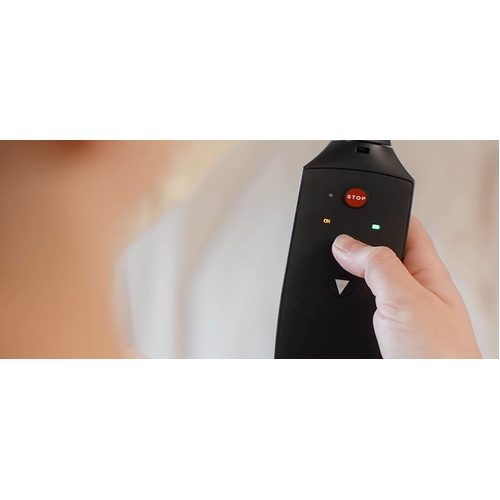

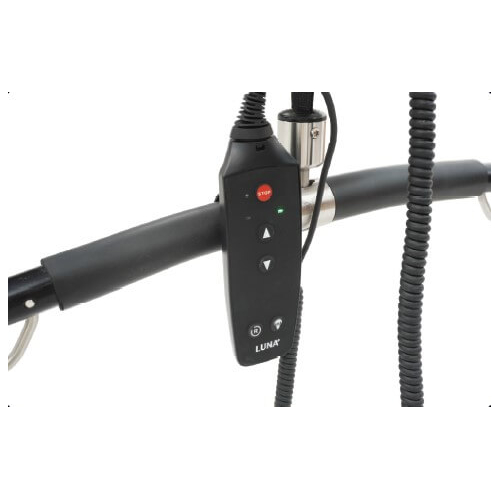

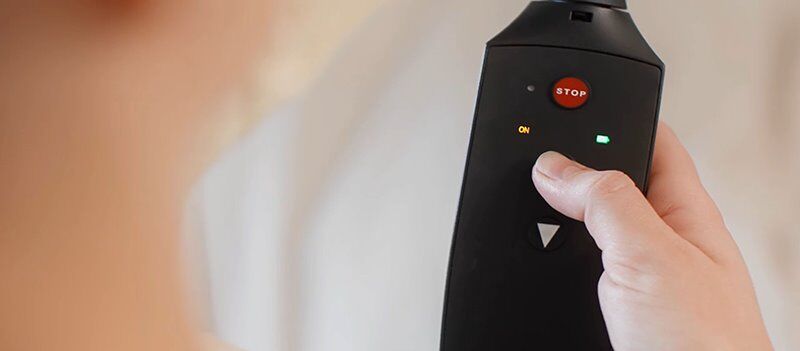

- User friendly hand control with emergency stop button within reach and exclusive smart maintenance system
- Wall charging station: make the hand control stay in place
Specifications
Maximum capacity: 150, 200 or 275 kg
Lifting range: 2500 mm
Weight: 5.2 kg without spreader bar

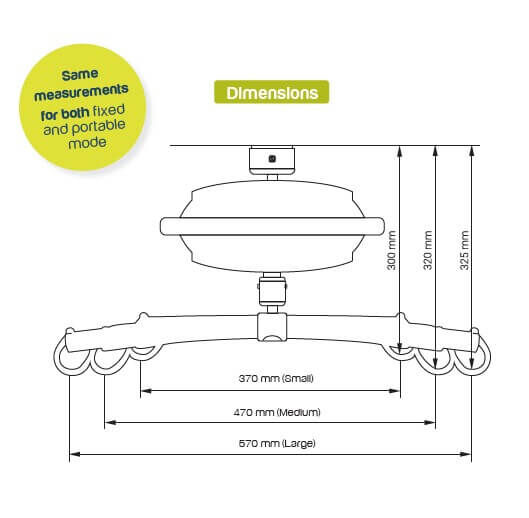

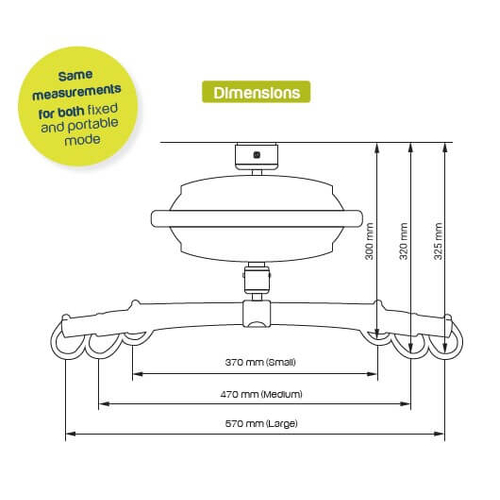

Measurements: Ø 320 x H 130 mm
Battery: 36V NiMH I Charging: 100-240V, 0,3A
Cover: High impact, moulded ABS
Noise: LwA during lifting/lowering without load is 49dB(A); LwA during lifting/lowering with 175 kg load is 53dB(A)
Lifting/lowering speed: 42 mm/sec. with 15-275 kg load; 90 mm/sec. with 0-15 kg load
Number of lifts on a fully charged battery: Approx. 85 lifting cycles with 90 kg
Protection class: Lifting module: IPX4; Hand control: IPX7
Expected lifetime: 20 years or 30.000 lifts
