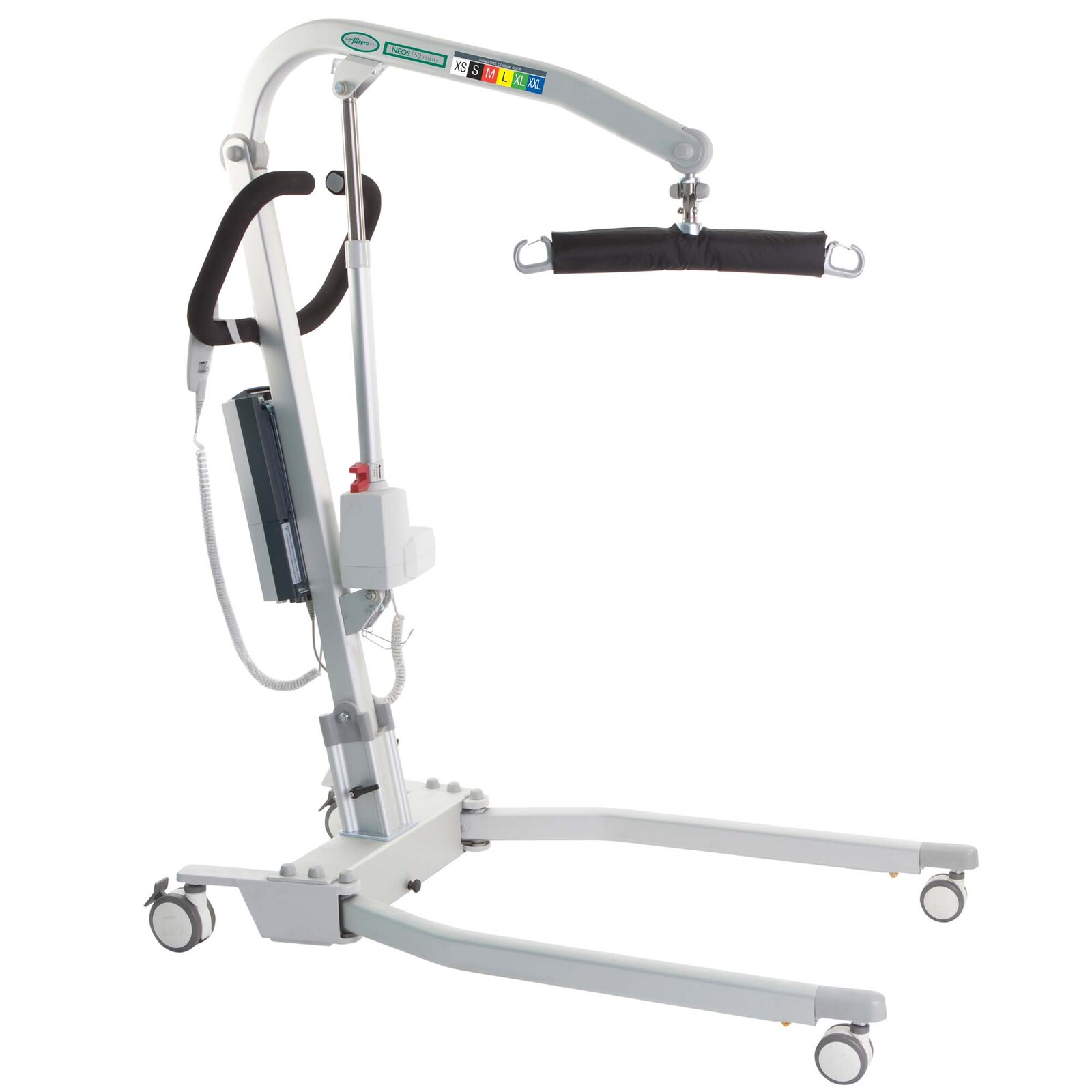

Neos 150 | Patient Lifting Hoist | Active Mobility Systems

The folding, aluminium Neos lifting hoist has a SWL of 150kg while its quick-release folding structure allows the hoist to be folded for storage and transfers.

Both lifting and raising functions are powered by Linak with an average lifting range of 1240mm while leg adjustment done through a foot pedal control to a maximum internal width of 890mm.

Stocked with safety features such as easy access to emergency lowering devices and an anti-entrapment feature which stops the boom from lowering any further when it encounters resistance.

Folding Aluminium Lift with a Safe Working Load (SWL) of 150kg
Quick release folding structure enables lift to be conveniently folded for storage and transfer
Electric raise and lower powered by Linak
Foot pedal control for leg adjustment
Equipped with 75mm front castors and 100mm locking rear castors
Quick release yoke

Safe Working Load: 150kg
Base Length: 1290mm
External Base Width Closed: 615mm
External Base Width Open: 965mm
Internal Base Width Closed: 550mm
Internal Base Width Open: 890mm
Base Width Adjustment: Manual
Under Bed Clearance: 135mm
Minimum Height Yoke: 410mm
Maximum Height Yoke: 1650mm
Average Lift Range: 1240mm
Lifter Weight: 35kg
Minimum Storage Height: 1370mm
Under Base Height: 72mm
Maximum Hoist Reach: 880mm
Minimum Hoist Reach: 440mm
Hoist Reach at Maximum Height: 450mm

SKU	2111002
Model #	7107
Brand	Allegro Concepts
Shipping Weight	40.0000kg
Shipping Width	0.715m
Shipping Height	0.560m
Shipping Length	1.330m
Shipping Cubic	0.532532000m3
