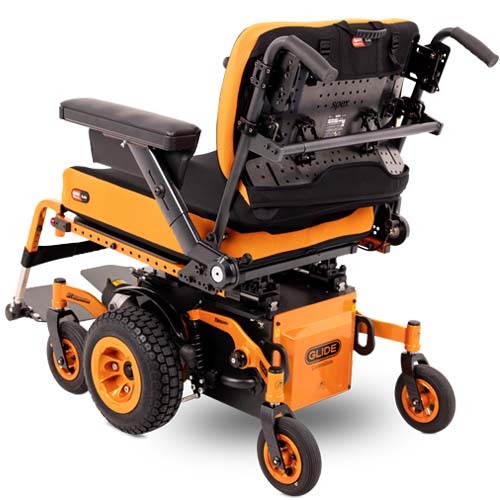

The Glide Centro Bariatric is a heavier duty version of the standard Centro as it caters for the larger and heavier user. It has a safe working load of 250kg with seat widths of up to 73cm while all features and options of the standard Glide Centro are available for the bariatric version. In addition it is manoeuvrable for a perfect blend of indoor and outdoor performance.

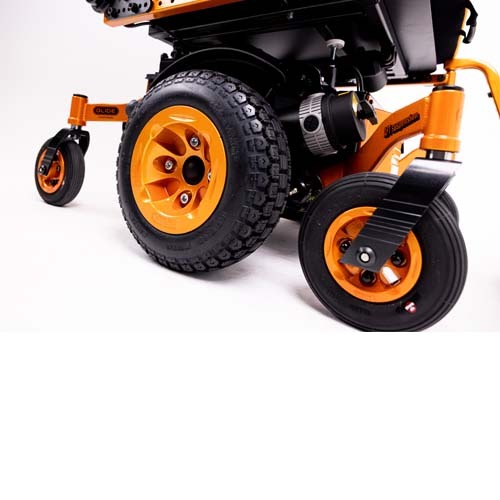

Active Pozi-Trak Drive System (APT)

Patented by Glide the APT is a unique suspension system that was developed to enhance the performance of its latest Mid Wheel Drive wheelchair. It is a three functional operation that increases traction on its drive wheels, aids with kerb climbing and acts as an anti-pitch device. The suspension system also eliminates nose dive when descending road side kerbs.

The drive wheels are set positive meaning when the wheelchair is on a level ground a preload of up to 20kg (depending on spring set up type) is on each drive wheel. This unique system greatly improves traction for driving and braking. It also performs extremely well in emergency down hill braking.

The APT is a low maintenance system and has eliminated the need for complex moving parts that need constant servicing or adjustements. Also, with the combination of varying spring set ups, the wheelchair can be fine tuned to suit the needs of the user.

FEATURES

  • PG R-Net EL 90 PM and Colour screen Joystick module.
  • Weight rating 250kg
  • 50 deg Power Tilt with Drive inhibit switch.
  • Castors 8” front and 7” Rear pneumatic (Optional foam filled)
  • Drive wheels 12” Pneumatic (Drive clutch release)
  • Brakes Electro Magnetic and manual attendant
  • Seat Height 45cm 0-46 Tilt and 48cm 4-50 tilt.( Measured floor to top of seat rail at front of chair)
  • Motors – 4 pole 9 K/hr High Power
  • Armrests Flip-up, no gap arms.
  • Choice of 4 colour finishes as Standard (Many more option refer to colour chart on our Web site)
  • Vehicle Tie Down locations – Front & Rear
  • Leg hangers - Drop-In heavy duty

SPECIFICATIONS

Max Recommended User Weight 250kg AS 3695 Full compliance
Weight 95kg (without batteries and seating)*
Operation Weight  Typical operational wheelchair weight 134kg – 142kg *
Rear Castors 7 ” pneumatic (optional 6″ or 8″)
Front Castors 200 -50 (8″) pneumatic   (optional 7″)
Drive Wheels 4.10/3.50 – 6 (12″)
Suspension APT
Overall Length 900mm (foot plate removed)
Overall Width 620mm (wheel base)
Seat Width 49, 52, 55, 58, 61, 64, 67, 70, 73cm
Seat Depth 40, 43, 46, 49, 52, 55, 58, 61cm
Seat Height 46cm (top of rail using 0-46 set up)
Back Height 1030mm Top of push handle (custom height available)
Seat Tilt 4-50 std (optional 0-46 degree)
Arm Rests Flip up (adjustable)
Leg Rests Drop-in swing away detatchable
Frame Colour choice
Brakes Electronic and manual park
Controls R-net LCD std (optional Dynamic)
Battery 75 Amp/hr (260Lx170Wx220H) Sealed
Range 40 km max with 75 Amp/hr

*Weight may vary, dependng on configuration

SKU 1139206
Model # CB-TSR
Brand Glide
Shipping Weight 1.0000kg
