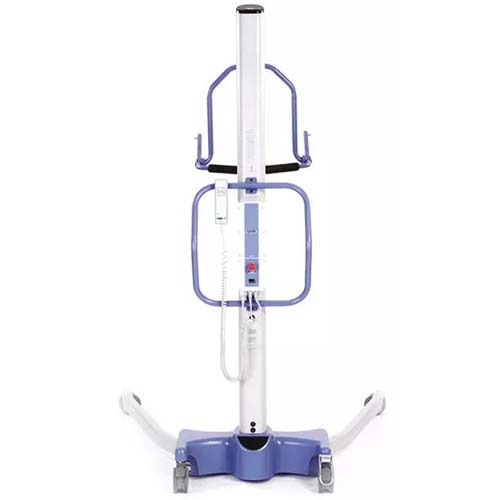

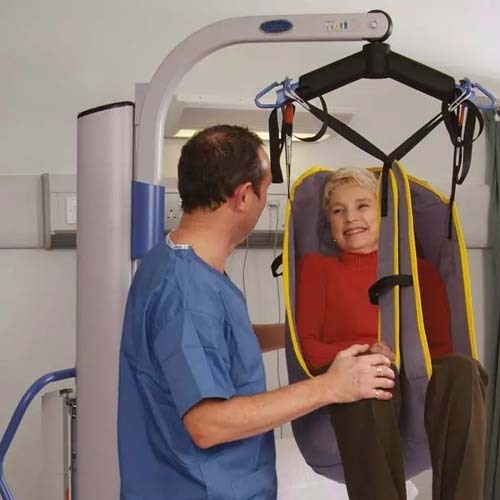

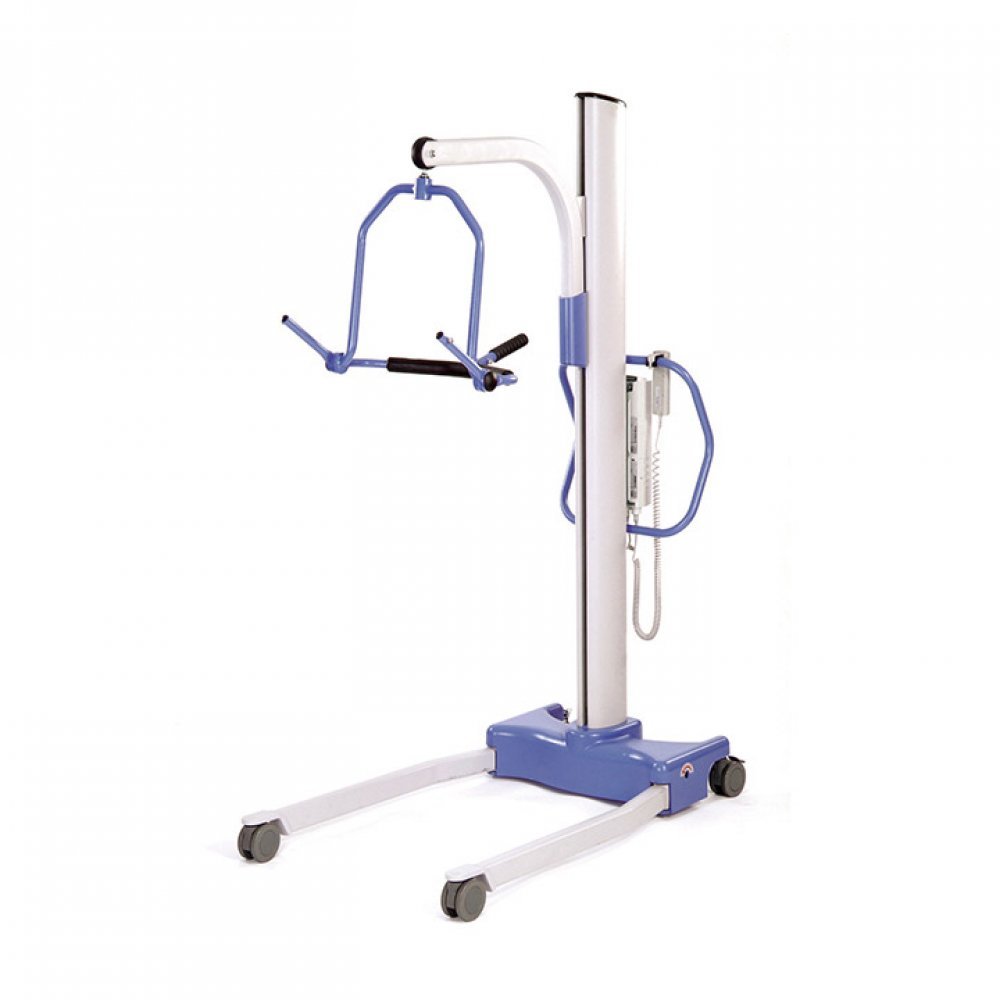

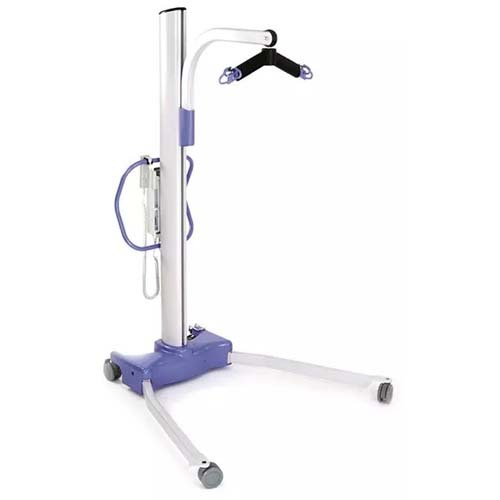

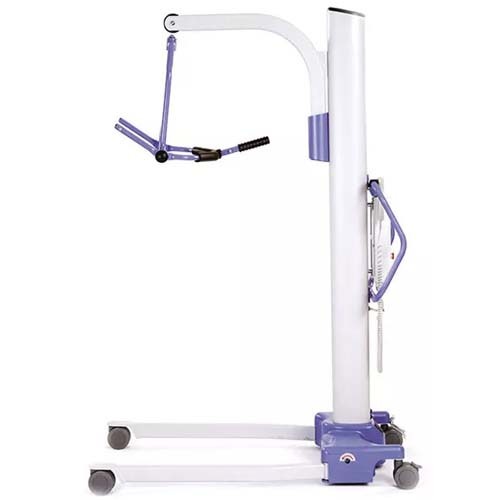

The Oxford Stature is a mobile, powered hoist with a large lifting range that can be used to lift a person to and from a bed, chair or the floor. It has an interchangeable six point spreader bar or four point tilting frame for sling attachment. Suitable for domestic or healthcare facility use.

FEATURES

  • Safe working load 227kg / 35st / 500lbs
  • Interchangeable spreader bar and cradle options
  • Ergonomic design considerations and interaction points
  • Powered leg positioning for excellent access around furniture
  • Stretcher and digital weigh-scale options

SPECIFICATIONS

Min/Max Overall Length: 1290/1390mm
Min/Max Overall Height: 1945/2130mm
Min/Max Width: 760/1360mm
Height at Max Reach: 1975mm
Reach at Min/Max Height: 625mm
Turning Radius: 1550mm
Overall Leg Height: 110mm
Ground clearance: 30mm
Weight: 73.5kg
Weight Capacity: 227kg

SKU 2154007
Model # MX-OXF-STATURE
Brand Oxford Mobility
Shipping Weight 93.5000kg
Shipping Width 0.860m
Shipping Height 1.600m
Shipping Length 0.200m
Shipping Cubic 0.275200000m3
