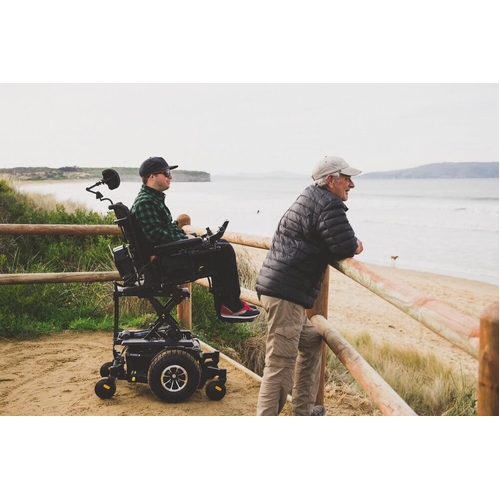

Q6 Edge 3 Power Wheelchair

Overview

The Q6 Edge 3 Power Wheelchair has upgraded SRS (Smooth Ride Suspension) providing a smooth and comfortable ride with advanced stability. The new optional 4-pole motors allow the maximum speed up to 7mph and its iLevel® is available at 4.5 mph.

The LED fender lights of Q6 Edge 3 locate at both front and rear of the chair, which make it more visible to others. It features TRU Balance® 4 Power Positioning system which supports effortless memory seating and anterior tilt.

The Q6 Edge 3 Power Wheelchair is available with optional WC19 occupied transit kit (crash-test approved) and Accu-Trac Advanced Tracking Technology. Its drive wheels are also available in a variety of accent colours.

Features

Upgraded SRS (Smooth Ride Suspension)
New optional 4-pole motors
Up to 4.5 mph with iLevel®
LED fender lights for both front and rear sides
A built-in USB charger port
Available with optional WC19 occupied transit kit (crash-test approved) and Accu-Trac Advanced Tracking Technology
Available with wide array of color choices for drive wheels

Specifications

Drive Wheels	Standard: 14” Solid Optional: 14” Pneumatic; 14” Knobby
Caster Wheels	Front: 6” Solid Rear: 6” Solid
Maximum Speed	Standard: Up to 6.25 mph Optional: Up to 7 mph (4.5 mph with iLevel®)
Ground Clearance	2.7” (battery tray)
Turning Radius	20.5”
Overall Length	35.5”
Base Width	24.4”
Battery Size	NF-22 (2)
Battery Weight	40 lbs. each
Available Electronics	120A Q-Logic 3 75A Q-Logic NES 90A Q-Logic NES 75A Q-Logic NE
Battery Charger	8A Off-board
Motor Packages	2-pole and 4-pole
Weight Capacity	300 lbs.
Base Weight	138.6 lbs.

Seating Sizes

TRU Balance® 4 Anterior Tilt

Width: 16-22”

Depth: 14-22”

Synergy® Seat

Width: 10-22”

Depth: 10-22”

TRU Balance® 3 Static Seat

Width: 12-22”

Depth: 12-22”

TRU Balance® 3 Power Tilt

TRU Balance® 4 Power Tilt

Width: 12-22”

Depth: 12-22”

TRU Balance® 3 Tilt and iLevel®

Width: 12-22”

Depth: 12-22”

TRU Balance® Flex Seating

Width: 15-22”

Depth: 15-20”

Seat-to-floor Heights

TRU Balance® 4 Anterior Tilt	18-19”
TRU Balance® 3 Static Seat	16-18”
TRU Balance® 3 Power Tilt TRU Balance® 4 Power Tilt	17.5-19.5”
TRU Balance® 3 Tilt & iLevel®	18-20”
TRU Balance® Flex Seating	16.5-18.5”
